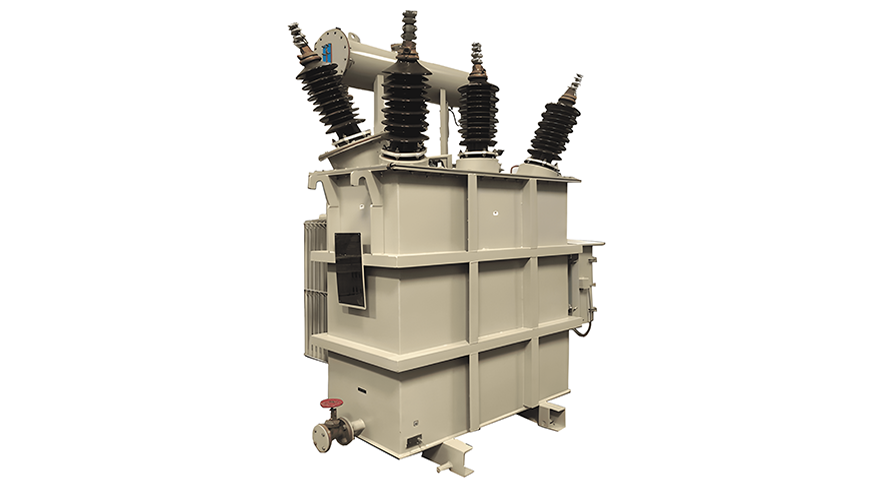

Earthing/Neutral Grounding Transformers

At kVA Process Transformers, we specialize in manufacturing high-quality Earthing/Neutral Grounding Transformers, essential components in three-phase electric power systems. These transformers provide a critical link between the electrical system and the ground, ensuring safety and reliability in power distribution.

Voltage Level: Up to 170 kV

Key Features:

Ground Path Provision: Our Earthing Transformers offer a ground path to ungrounded wye or delta-connected systems, stabilizing the system neutral at or near ground potential.
Fault Current Limitation: Designed to limit the magnitude of fault currents during line-to-ground faults, protecting equipment and enhancing system stability.
Zigzag Winding Configuration: Utilizing a zigzag or interconnected star winding connection, our transformers efficiently handle unbalanced loads and reduce power losses.
Robust Construction: Built to withstand demanding operational conditions, ensuring long-term durability and performance.

Our Products Section - Final Compact Version

Technical Specifications:

Voltage Level: Up to 170 kV
Neutral Fault Current & Duration: Customized as per client requirements
Auxiliary Load Winding: Up to 630 kVA, tailored to specific needs
Cooling Options: ONAN (Oil Natural Air Natural) / ONAF (Oil Natural Air Forced)

Benefits & Applications:

Safety Enhancement: Provides a low-impedance path to ground, protecting personnel from electrical shocks and preventing system failures.
System Protection: Limits transient over-voltages and fault currents, safeguarding equipment and ensuring reliable electricity supply.
Versatility: Suitable for various industrial and commercial applications, including integration with ungrounded systems to establish a neutral point.

Quality and Compliance

Certifications: IS/2026, IS/1180, IS/11171
Quality Assurance: Adherence to stringent quality standards throughout design, production, and testing phases, ensuring high performance and reliability.

Support and Services

Maintenance and Repair Services: Exclusive repair services for our manufactured transformers, providing specialized support to maintain optimal performance.
