| INDUCTION FURNACE TRANSFORMERS

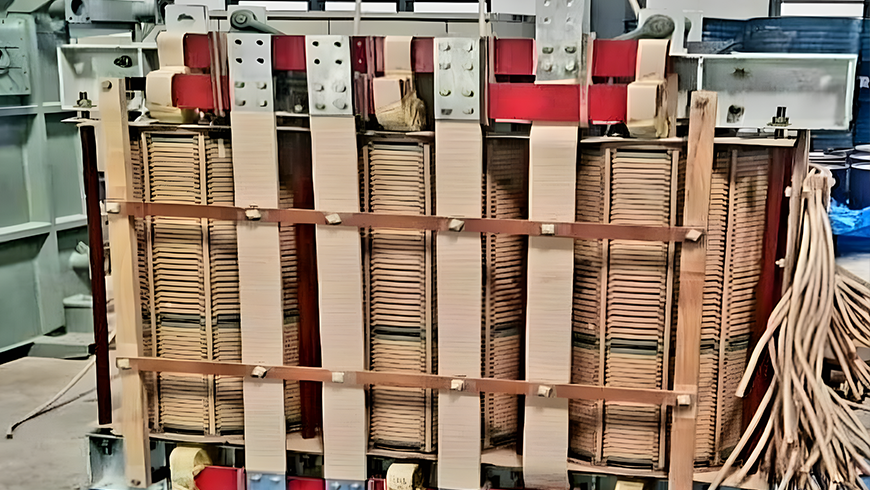

Induction Melting Furnace
Transformers

The induction melting furnace transformers are specifically engineered for industrial applications that require precise and efficient induction heating. These transformers effectively power induction furnaces using a sophisticated inverter circuit to generate medium-frequency voltage (500Hz or 1000Hz). The heavy copper tubing construction of the coil, precisely tuned to the inverter circuit, enables the induction coil to generate a magnetic field that induces eddy currents in the charge, resulting in efficient heating.

Configurations: 6, 12, 18 & 24 Pulse

Key Features:

Construction of Coil: Coils are built with robust heavy copper tubing to ensure long-term durability and optimal efficiency.
Medium Frequency: The transformers are designed to operate at medium frequencies, facilitating rapid and effective heat generation.
Input Voltages: Compatible with a range of input voltages derived from standard three-phase AC distribution systems.
Flexible Configuration: Available in four different configurations with varying pulse vectors: 6 Pulse, 12 Pulse, 18 Pulse, and 24 Pulse.

Our Products Section - Final Compact Version

Technical Specifications:

Input Voltage Range: Compatible with standard three-phase AC distribution voltages, including 433 V, 3.3 kV, 6.6 kV, 11 kV, 22 kV, and 33 kV.
DC Output Voltage Range: The transformers offer a DC output voltage range from 400 to 1250 volts, depending on the application requirements.
Configurations: Available in four different pulse configurations – 6 Pulse, 12 Pulse, 18 Pulse, and 24 Pulse, with different vector groups.

Benefits and Applications

Benefits:

These medium-frequency optimized transformers ensure rapid and effective heat generation, making them ideal for induction heating applications.
The heavy copper tubing and robust design offer enhanced durability and efficiency, ensuring long-term performance.
The transformers are adaptable to a range of input voltages, providing flexibility for various industrial needs.
The ability to adjust to different vector groups allows for customization based on specific application requirements.

Industry Applications

kVA Process Transformers’ Induction Melting Furnace Transformers are essential for industries requiring precise and efficient induction heating. They are particularly effective in heat treatment and metal melting processes, where controlled, high-temperature environments are critical for achieving optimal results.

Quality and Compliance

Certifications: IS/2026, IS/5553, IS/12977.
Quality Assurance: We guarantee the highest quality for all our products, from design through production, labour, and quality assurance. Our transformers are engineered with a focus on reliability and performance.

Support and Services

Maintenance and Repair Services: Repair services are available exclusively for transformers manufactured by us.
