LT Panel Boards

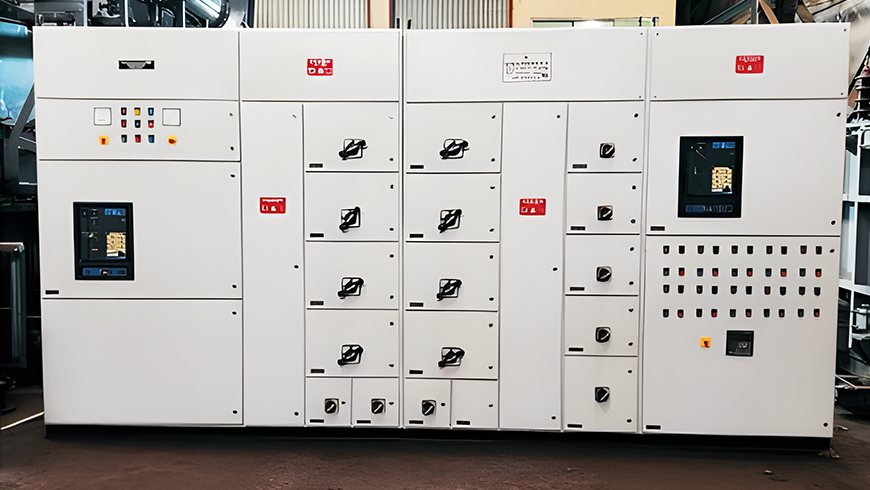

kVA Process Transformers’ LT Panel Boards are meticulously engineered to meet diverse industrial requirements, ensuring reliable and efficient power distribution. Constructed from high-quality 2mm thick CRCA sheet steel, these panels are designed to be free-standing, dust-proof, and vermin-proof, providing exceptional durability and protection in demanding environments. They are suitable for 3-phase, 415 volts, TPN, 50 Hz AC supply systems and are available in both single and double front configurations.

Protection Rating: IP52

Technical Specifications:

Material Construction: Fabricated from 2mm thick CRCA sheet steel.
Protection Class: IP52 rated for superior protection.
Busbars: Copper (electrolytic grade, 1.6 Amp/sq.mm) and Aluminum (E91E grade, 1.0 Amp/sq.mm), insulated with heat-shrinkable PVC sleeves.
Voltage Rating: Designed for 3-phase, 415 Volts, TPN, 50 Hz AC supply systems.
Structural Integrity: Incorporates FRP supports to enhance robustness and withstand short-circuit conditions.
Sealing: Equipped with synthetic rubber gaskets on doors and cut-outs to ensure panels are dust, damp, and vermin-proof.
Finish: Undergoes a nine-tank hot phosphating process, followed by a powder-coated, oven-baked finish in RAL7032 shade.

Our Products Section - Final Compact Version

Benefits & Applications:

Reliability:Ensures a dependable power distribution system with high-quality components and robust construction.
Versatility:Offers flexibility and adaptability across various industries with its compartmentalized design and comprehensive protection.
Power Control:Power Control Centers, Motor Control Centers, Power Distribution Boards.
Automation:Automatic Power Factor Controllers, 33KV Relay Control Panels, Automatic Changeover Panels, Auto-Mains Failure Panels.
Specialized Control:Furnace Control Desks, Distribution Boards, Control Boards, Synchronizing Control Panels, DG Set Main Control Panels, L.T. Bus Duct Systems.
kVA Process Transformers’ LT Panel Boards are designed to deliver exceptional performance, safety, and reliability, making them an ideal choice for a wide range of industrial applications.
