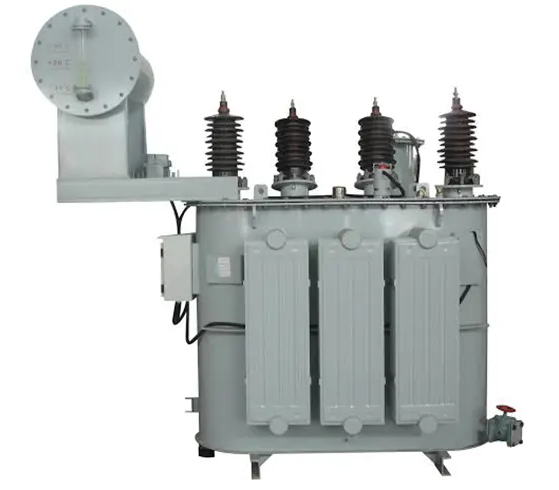

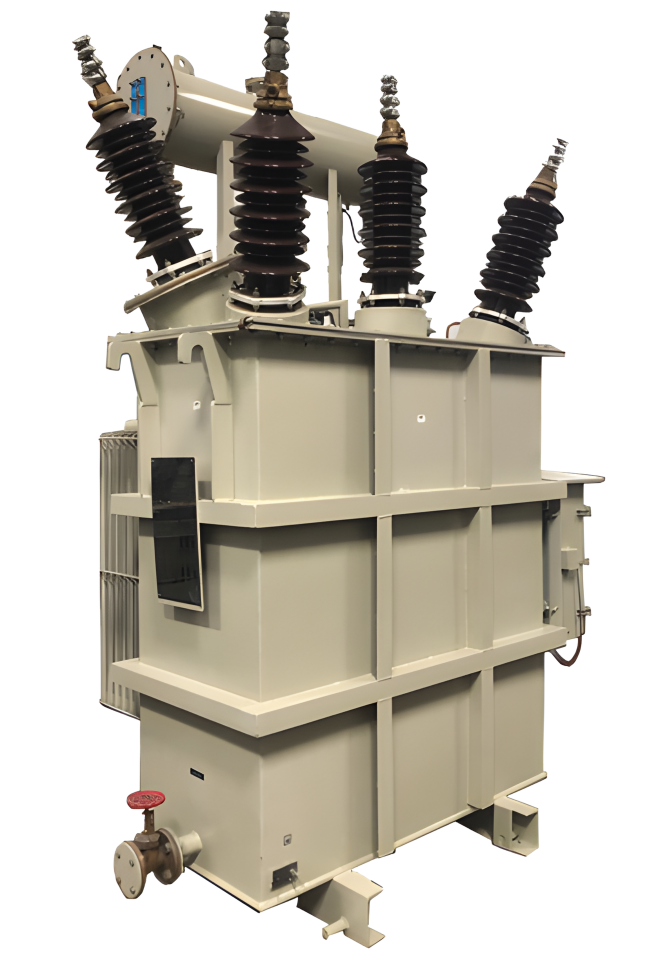

Earthing Transformers

earthing-transformers earthing-transformers

At kVA Process Transformers, we specialize in manufacturing high-quality Earthing/Neutral Grounding Transformers, essential components in three-phase electric power systems. These transformers provide a critical link between the electrical system and the ground, ensuring safety and reliability in power distribution.

Key Features:

  1. Ground Path Provision:Our Earthing Transformers offer a ground path to ungrounded wye or delta-connected systems, stabilizing the system neutral at or near ground potential.
  2. Fault Current Limitation:Designed to limit the magnitude of fault currents during line-to-ground faults, protecting equipment and enhancing system stability.
  3. Zigzag Winding Configuration:Utilizing a zigzag or interconnected star winding connection, our transformers efficiently handle unbalanced loads and reduce power losses.
  4. Robust Construction:Built to withstand demanding operational conditions, ensuring long-term durability and performance.

Technical Specifications:

  1. Voltage Level:Up to 170 kV
  2. Neutral Fault Current & Duration:Customized as per client requirements
  3. Auxiliary Load Winding:Up to 630 kVA, tailored to specific needs
  4. Cooling Options:ONAN (Oil Natural Air Natural) / ONAF (Oil Natural Air Forced)

Benefits & Applications:

  1. Safety Enhancement:Provides a low-impedance path to ground, protecting personnel from electrical shocks and preventing system failures.
  2. System Protection: Limits transient over-voltages and fault currents, safeguarding equipment and ensuring reliable electricity supply.
  3. Versatility:Suitable for various industrial and commercial applications, including integration with ungrounded systems to establish a neutral point.

Quality and Compliance

  1. Certifications:IS/2026, IS/1180, IS/11171
  2. Quality Assurance:Adherence to stringent quality standards throughout design, production, and testing phases, ensuring high performance and reliability.

Support and Services:

  1. Maintenance and Repair Services:Exclusive repair services for our manufactured transformers, providing specialized support to maintain optimal performance.

For more information on our Earthing/Neutral Grounding Transformers and how they can enhance the safety and reliability of your power systems, please contact our team.

FAQ

What is the function of a Neutral Grounding Transformer?
It provides a neutral point in a power system for controlled fault currents, ensuring system stability and improved protection during ground faults.
Why is earthing important in an electrical system?
Proper earthing prevents electrical shocks, stabilizes voltage levels, and protects equipment from damage caused by lightning or fault currents.
What are the different grounding methods used with these transformers?
Resistance grounding, reactance grounding, and solid grounding are commonly used based on application and fault current limitations.
How does a Neutral Grounding Transformer enhance safety?
It limits fault currents and prevents excessive damage to equipment by providing a controlled path for fault currents to flow safely to the ground.
Where are Neutral Grounding Transformers typically used?
These transformers are widely used in industrial plants, substations, power generation facilities, and renewable energy systems to ensure grid stability.
Can Neutral Grounding Transformers be customized for specific applications??
Yes, Makpower offers custom-designed grounding transformers based on system voltage, fault current ratings, and customer specifications.
