LT Panel Board

earthing-transformers

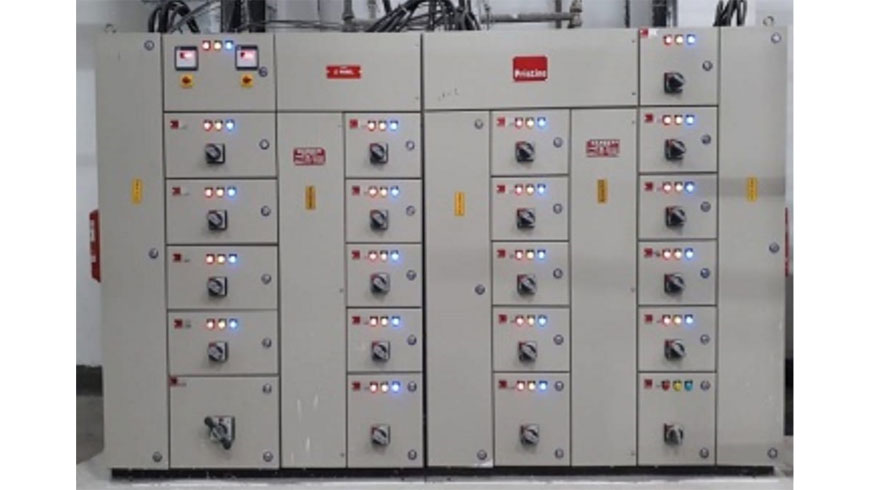

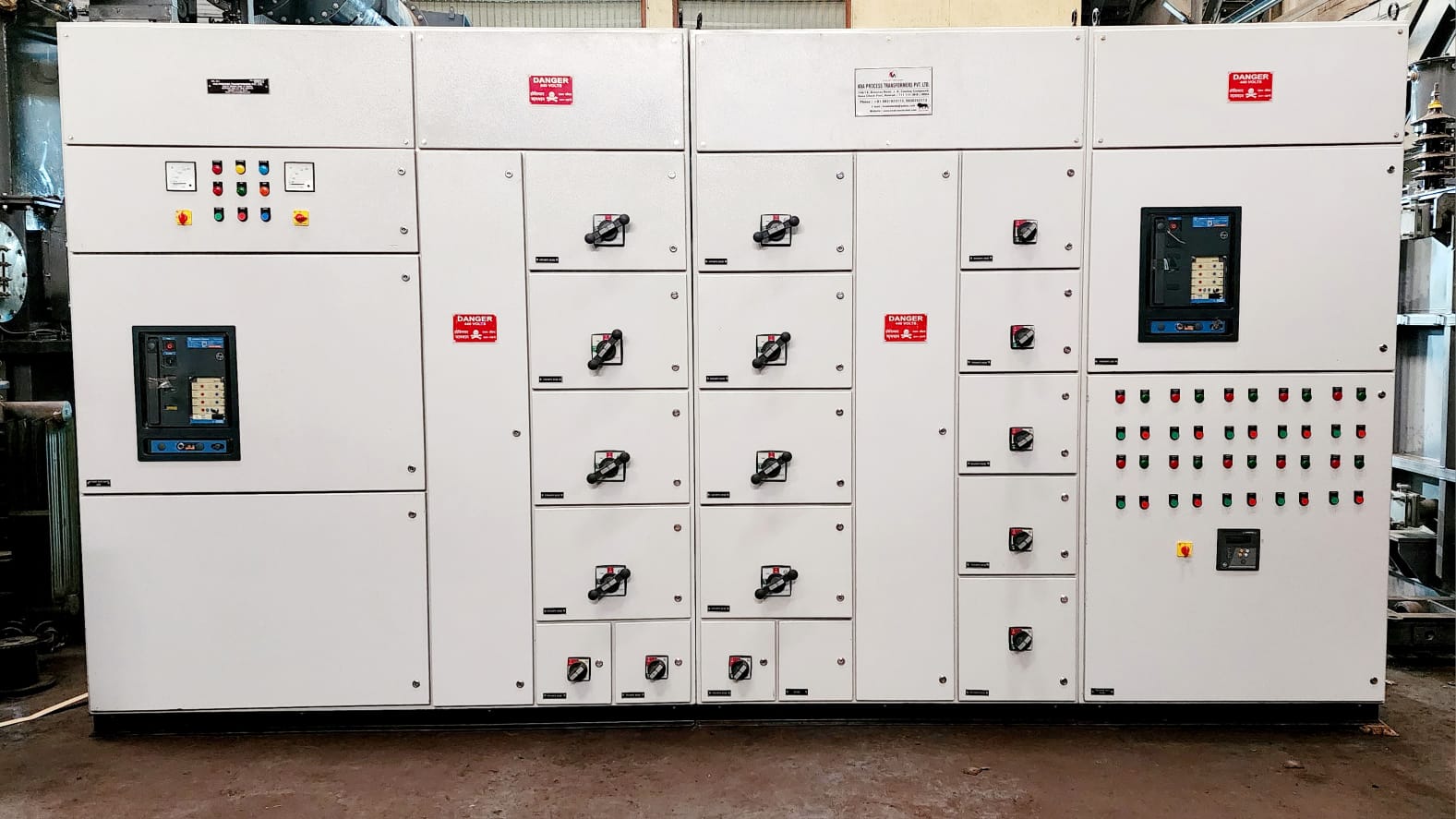

kVA Process Transformers’ LT Panel Boards are meticulously engineered to meet diverse industrial requirements, ensuring reliable and efficient power distribution. Constructed from high-quality 2mm thick CRCA sheet steel, these panels are designed to be free-standing, dust-proof, and vermin-proof, providing exceptional durability and protection in demanding environments. They are suitable for 3-phase, 415 volts, TPN, 50 Hz AC supply systems and are available in both single and double front configurations.

Key Features:

  1. Protection Rating:Rated at IP52, offering robust defense against dust and environmental factors.
  2. Busbars:Utilizing electrolytic grade copper busbars with a current density of 1.6 Amp/sq.mm, and E91E grade aluminum busbars at 1.0 Amp/sq.mm, all insulated with heat-shrinkable PVC sleeves and color-coded for easy identification.
  3. Structural Integrity: Incorporates FRP supports to enhance robustness and withstand short-circuit conditions
  4. Sealing:Equipped with synthetic rubber gaskets on doors, cut-outs, and cable entry plates, ensuring the panels are fully dust, damp, and vermin-proof.
  5. Finish:Undergoes a comprehensive nine-tank hot phosphating process for corrosion resistance, followed by a powder-coated, oven-baked finish in RAL7032 shade.

Technical Specifications:

  1. Material Construction: Fabricated from 2mm thick CRCA sheet steel.
  2. Protection Class:IP52 rated for superior protection.
  3. Busbars:Copper (electrolytic grade, 1.6 Amp/sq.mm) and Aluminum (E91E grade, 1.0 Amp/sq.mm).
  4. Voltage Rating: Designed for 3-phase, 415 Volts, TPN, 50 Hz AC supply systems.
  5. Support Structure:FRP supports for enhanced structural integrity.
  6. SFinishing:Powder-coated with an oven-baked finish, shade RAL7032.

Benefits & Applications:

  1. Reliability:Ensures a dependable power distribution system with high-quality components and robust construction.
  2. Versatility:Offers flexibility and adaptability across various industries with its compartmentalized design and comprehensive protection.

Applications:

  1. Power Control:Power Control Centers, Motor Control Centers, Power Distribution Boards.
  2. Automation:Automatic Power Factor Controllers, 33KV Relay Control Panels, Automatic Changeover Panels, Auto-Mains Failure Panels.
  3. Specialized Control:Furnace Control Desks, Distribution Boards, Control Boards, Synchronizing Control Panels, DG Set Main Control Panels, L.T. Bus Duct Systems.

kVA Process Transformers’ LT Panel Boards are designed to deliver exceptional performance, safety, and reliability, making them an ideal choice for a wide range of industrial applications.

FAQ

What is an LT Panel Board used for?
LT (Low Tension) Panel Boards distribute electrical power efficiently in industrial and commercial setups, ensuring safe and controlled power supply management.
What type of protection do LT panels provide?
LT Panels feature circuit breakers, overload protection, short-circuit protection, and fault detection systems to ensure operational safety.
Can Makpower LT Panels be customized?
Yes, Makpower LT Panels can be tailored to meet specific load requirements, control configurations, and safety standards based on customer needs.
What is the IP rating of Makpower LT Panels?
The LT panels are designed with IP55 or higher ratings, ensuring protection against dust, moisture, and external contaminants.
How are the busbars designed in these panels?
Busbars are made from high-quality copper or aluminum, covered with heat-shrinkable PVC sleeves for phase color identification and enhanced safety.
What standards do Makpower LT Panels comply with?
These panels conform to international standards such as IEC 61439 and IS 8623, ensuring reliability and adherence to quality benchmarks.
